Specifications
| Supported CPU | Intel Pentium / Celeron / i3 / i5 / i7 (6th, 7th, 8th & 9th Generation) Series Processors in LGA 1151 |
|
| Chipset | Intel H110 | |
| Memory Supported | “2 x DDR4 DIMM Memory Slots Memory up to 32GB Supports DDR4 2133/2400/2666 MHz memory” |
|
| BIOS | AMI BIOS | |
| I/O Interface | 1 x HDMI port, 1 x VGA Port, 4 x USB 2.0 Port, 2 x USB 3.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio |
|

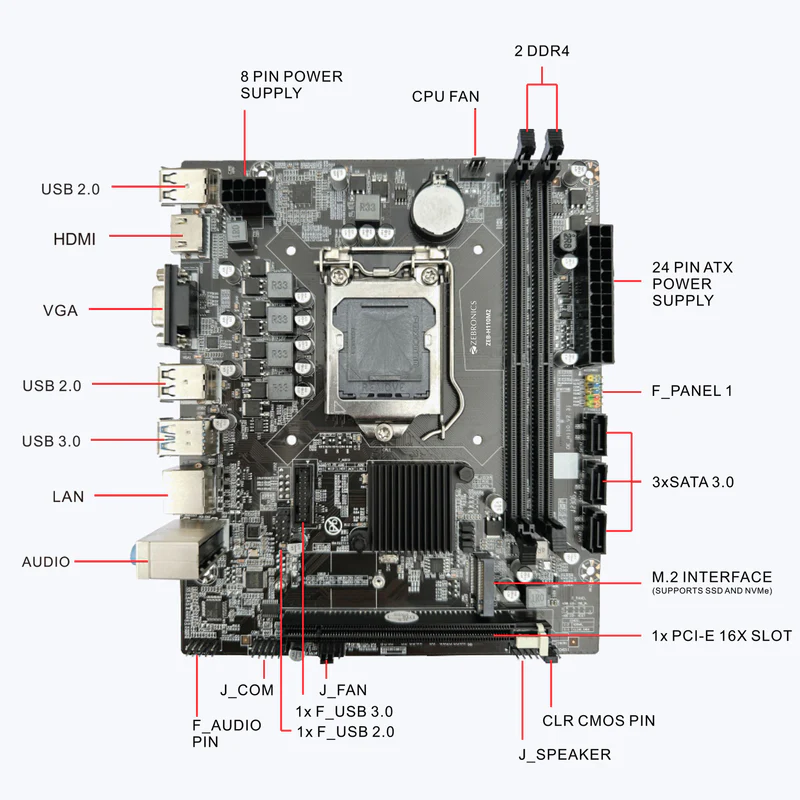

| Onboard Interface | 1 x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector, 1 x Front Panel connector, 1 x Front Audio Connector, 1 x Speaker Connector, 1 x USB 2.0 Connectors, 1 x USB 3.0 Connector, 1 x CPU Fan Connector, 1 x SYS Fan Connector, 1 x clear CMOS Connector,3 x SATA 3.0. |
|
| Integrated LAN | Supports RTL 8111G 10/100/1000 Mbps Ethernet LAN | |
| Integrated Sound | With 5.1-Channel HD Audio | |
| Expansion Slot | 1 x PCI Express x16 slot,1 x NVMe M.2 slot | |
| Form Factor | Micro-ATX |
