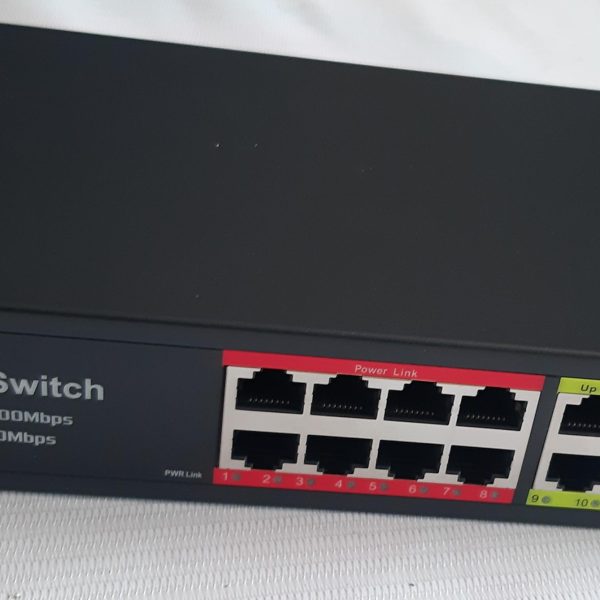

CP Plus 8-Port PoE Switch 10/100 Mbps for IP CCTV Cameras.

Brand:
Network Port PoE (1~6):10/100Mbps PoE ports (RJ45) PoE (7~8):10/100Mbps PoE ports, BT port, Compatible uplink ports (RJ45) LAN:10/100Mbps uplink ports (RJ45)
Switch Capacity Bandwidth 1.8 Gbps
PoE Standard IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance 100Mbps /10Mbps Adaptive MAX 250m
MAC Address List 2K
Lightning Protection 6KV, Per: IEC61000-4-5
PoE Power Budget 120W
ESD Protection 8KV, Per: IEC61000-4-2
Power Source AC 110~220V Total ≤120W
Working Temp -30°C ~60°C
WARRANTY 1 YEAR

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

18 People watching this product now!

Description

8EP + 1E 10/100Mbps AI PoE Switch

  • Using CAT.5/6 network patch cords support power for the wireless AP and IP camera.
  • Networking standard: IEEE802.3af/at/bt.
  • PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart
  • Upload port automatic flip (Auto MDI / MDIX)
  • 6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
  • FE ports can support 250 meters long distance transmission automatically
  • The port power is 60 watts, it is convenient for high-power device
  • Zero configuration feature power supply is automatically supplied to the adaptive equipment
